Berg Strip Right Angle
Price range: ₹650.00 through ₹1,300.00 Inclusive of tax

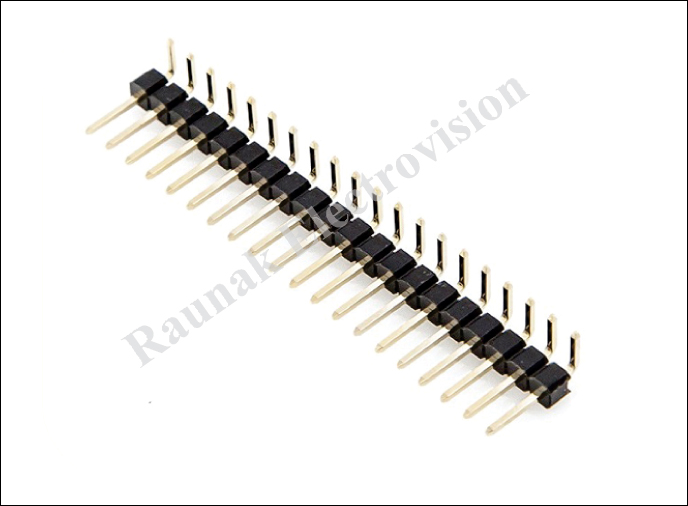

The 2.54 mm Right Angle Male Berg Strip is a low-profile, 90-degree breakaway pin header connector engineered for horizontal board-to-board, wire-to-board, and edge-panel connections. Featuring standard 2.54 mm (0.1″) pitch, square brass pins with tin/gold plating, and an easy-snap breakaway base, it allows side-entry wiring in compact enclosures, custom shields, and space-constrained PCB layouts.
Description
Optimize vertical enclosure clearance and create clean edge connections with the 2.54 mm 90° Right Angle Male Berg Strip Connector. Designed for side-access wiring, this connector routes DuPont jumper wires, flat ribbon harnesses, and daughterboards horizontally across the board edge, keeping the overall assembly low-profile.
Built with high-conductivity square brass pins and a high-temperature UL94V-0 rated thermoplastic insulator base, it provides low contact resistance, excellent solderability, and mechanical stability. The breakaway insulator can be snapped or cut to any custom pin count (such as 2, 4, 6, 8, 16, or 20 pins) without compromising pitch spacing.
Key Features
-
90° Right Angle Orientation: Enables horizontal side-entry connections to minimize vertical height in slim enclosures and stackable boards.
-
Standard 2.54 mm (0.1″) Pitch: Fully compatible with standard PCB spacing, female Berg headers, DuPont cables, and development boards.
-
Breakaway Design: Easily cut or snapped into any custom pin length (from 1 pin up to 40 pins).
-
High Electrical Conductivity: Plated brass square posts resist corrosion and deliver consistent signal and power transmission.
-
Heat-Resistant Insulator: High-temp PBT body withstands hand and wave soldering temperatures.
Technical Specifications
| Parameter | Specification |
| Product Type | Right Angle Male Berg Strip / 90° Breakaway Pin Header |
| Pin Configuration | 1×40 (Single Row) / 2×40 (Dual Row) |
| Pitch Spacing | 2.54 mm (0.10″) |
| Orientation | Right Angle / Horizontal (90° Bent) |
| Mounting Type | Through-Hole (THT PCB Solder Mount) |
| Pin Profile | Square Post (0.64 mm / 0.025″) |
| Mating Pin Height | Standard ~6.0 mm (Horizontal Extension) |
| Insulator Material | High-Temp PBT / PA6T (Black, UL94V-0) |
| Contact Material | Brass / Phosphor Bronze (Tin-Plated / Gold-Flash) |
| Rated Current | Up to 3 A |
| Rated Voltage | 250 V AC / DC |
| Operating Temperature | -40°C to +105°C |
Additional information
| Pack Size |
50 Pcs ,100 Pcs |
|---|
