RSFR-EV
Price range: ₹450.00 through ₹2,100.00 Inclusive of tax
Orange Heat Shrink Insulation Tube For Electric Vehicles.
Features
-
- Flame retardant
- Continuous operating temperature : -55 °C- 125 °C
- Minimum shrink temperature : +84°C
- Fully shrink temperature : +120°C
- RoHS compliant
- Standard Color : Orange (RAL2003)
Description

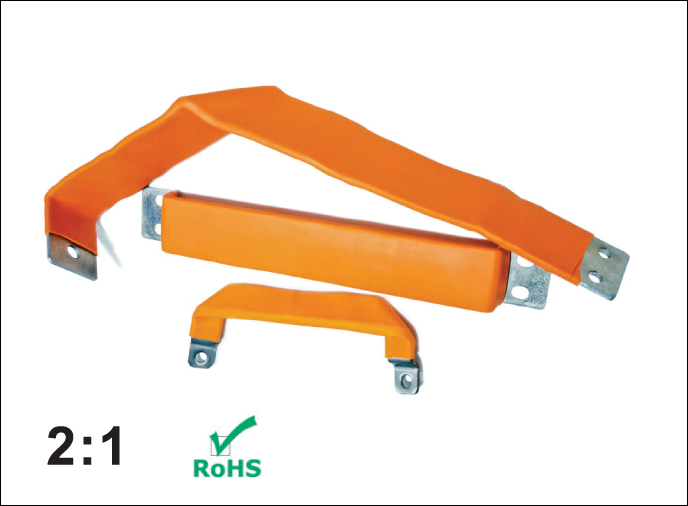

Ensure maximum electrical safety, dielectric isolation, and visual hazard identification with RSFR-EV High-Voltage Busbar Heat Shrinkable Tubing. Developed specifically for new energy electric vehicles (EV), battery energy storage systems (BESS), and heavy power distribution panels, this sleeve tightly conforms to flat, curved, and rectangular copper or aluminum busbars when heat is applied.
Molded in safety-compliant bright orange (the global standard for high-voltage DC circuits), it provides clear visual warning to technicians and assembly operators. Its radiation cross-linked polyolefin structure provides exceptional resistance against high operating temperatures, electrical tracking, chemical solvents, and mechanical abrasion, significantly reducing phase-to-phase clearance requirements inside compact battery enclosures and switchboards.
Key Features
-
Safety High-Voltage Orange: Conforms to EV industry safety standards for immediate identification of high-voltage lines and battery interconnections.
-
2:1 Shrink Ratio: Recovers smoothly over complex, flat, and bent busbars without cracking, splitting, or wrinkling.
-
Superior Flame Retardancy (UL94 V-0): Self-extinguishing material designed to prevent fire propagation in high-energy battery compartments.
-
High Dielectric Strength: Rated for 600V to 1500V DC systems to prevent arcing, tracking, and short circuits in space-constrained enclosures.
-
Thermal & Chemical Endurance: Resists automotive fluids, battery electrolytes, UV radiation, and continuous high-load thermal stress.
Technical Specifications
| Parameter | Specification |
| Model / Series | RSFR-EV (Busbar / EV Series) |
| Application | Electric Vehicles (EV), BESS, Copper/Aluminum Busbar Insulation |
| Shrink Ratio | 2:1 |
| Material | Cross-Linked Halogen-Free Polyolefin |
| Color | High-Voltage Warning Orange |
| Flammability Rating | UL94 V-0 / VW-1 (Self-Extinguishing) |
| Voltage Rating | 600 V – 1500 V DC |
| Operating Temperature | -45°C to +125°C |
| Minimum Shrink Temp | +70°C |
| Full Recovery Temp | +110°C to +130°C |
| Dielectric Breakdown | ≥ 20 kV/mm |
| Environmental Compliance | RoHS & REACH Compliant |
Additional information
| Length |
10 Meters ,50 Meters |
|---|
