D-Sub R/A
Price range: ₹900.00 through ₹1,800.00 Inclusive of tax

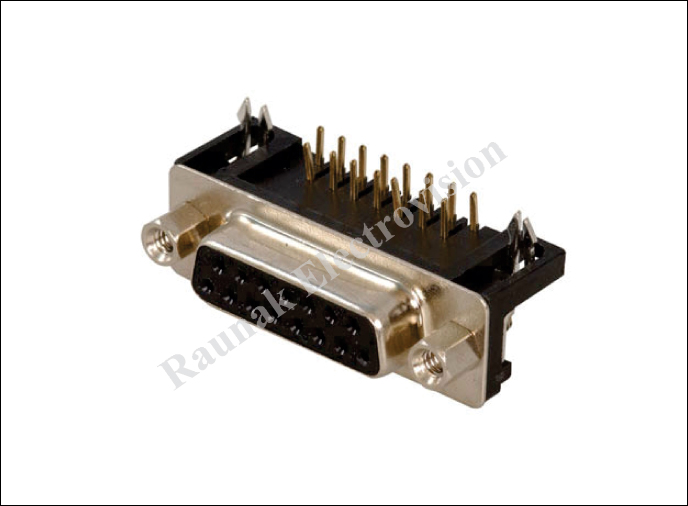

The D-Sub Right Angle PCB Mount Connector is a heavy-duty, 90-degree through-hole connector designed for edge-of-board serial and video interfacing. Available in DB9 (RS232), HD15 (VGA), DB15, and DB25 in both Male (Plug) and Female (Socket) configurations, it features a rugged nickel-plated steel shell, gold-plated contacts, and integrated boardlocks with UNC 4-40 threaded standoffs for vibration-resistant chassis mounting.
Description
Integrate reliable serial communication and video ports directly onto the edge of your circuit boards with the Right Angle (90°) D-Sub PCB Connector. Engineered specifically for low-profile enclosures and rack-mounted chassis, the horizontal mating orientation allows cables to plug in directly from the panel face while keeping the overall board height compact.
Built with a stamped steel outer shell and high-conductivity brass/copper alloy pins with gold plating, this connector provides superior EMI/RFI shielding, corrosion resistance, and low signal attenuation. Each connector is fitted with PCB boardlocks (harpoon brackets) for mechanical grounding and board stability, along with front-facing UNC 4-40 female threaded hex standoffs to lock mating cable thumbscrews securely.
Key Features
-
90° Right Angle Profile: Ideal for chassis edge-mounting, minimizing vertical height in slim rack-mount enclosures.
-
Standard Footprints: Available in standard serial DB9, DB15, DB25 and high-density HD15 (VGA) configurations.
-
Comprehensive EMI/RFI Shielding: Stamped nickel-plated steel front shell shields high-speed data lines from external electrical noise.
-
Integrated Hardware: Equipped with dual UNC 4-40 threaded standoffs and solderable PCB grounding brackets.
-
Durable Thermoplastic Body: Molded from high-temperature UL94V-0 PBT to withstand wave and hand soldering processes.
Technical Specifications
| Parameter | Specification |
| Product Type | D-Subminiature Right Angle (90°) Connector |
| Mounting Type | Through-Hole (THT PCB Solder Mount) |
| Port Types | DB9 (9-Pin), HD15 (15-Pin VGA 3-Row), DB15 (2-Row), DB25 (25-Pin) |
| Gender Options | Male (Plug with Pins) / Female (Socket with Receptacles) |
| Contact Pitch | Standard 2.77 mm / High Density 2.29 mm |
| Shell Material | Stamped Steel (Nickel-Plated / Tin-Plated) |
| Contact Material | Copper Alloy / Brass (Gold-Flash / Tin-Plated) |
| Insulator Material | PBT Thermoplastic (UL94V-0, Black / Blue) |
| Hardware | Pre-fitted UNC 4-40 Hex Threaded Standoffs & PCB Ground Locks |
| Current Rating | Up to 5 A per pin |
| Voltage Rating | 250 V – 300 V AC/DC |
| Operating Temperature | -55°C to +105°C |
Additional information
| Pack Size |
50 Pcs ,100 Pcs |
|---|
