FRC Male Lock Type
Price range: ₹800.00 through ₹1,600.00 Inclusive of tax

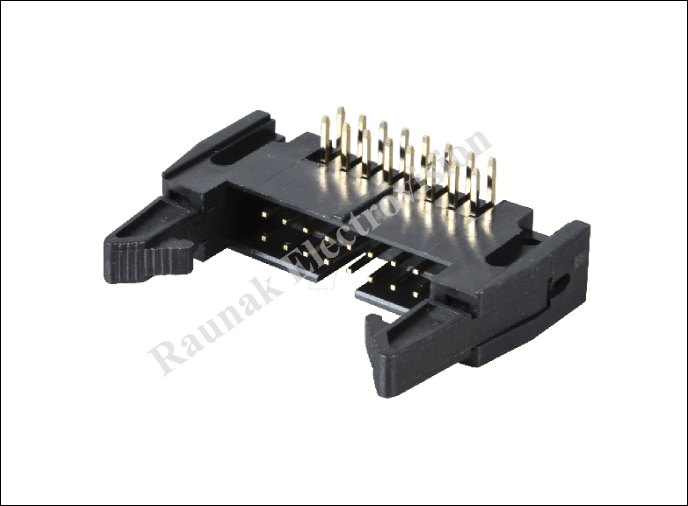

The DC2 Latching FRC Male Box Header is a PCB mount ribbon cable connector engineered with mechanical locking/ejector latches for high-vibration applications. Featuring an industry-standard 2.54 mm (0.1″) pitch, dual locking arms, and center polarization, it firmly locks mating female IDC sockets in place and provides effortless, zero-strain cable ejection for industrial controllers, robotics, and telecom equipment.
Description
Prevent accidental cable disconnections and eliminate pin damage during maintenance with the DC2 Series 2.54 mm Latching FRC Male Box Header. Built with robust dual side-locking latches (ejector ears), this connector provides positive mechanical locking when mated with female IDC flat ribbon cable sockets.
When disconnecting, simply pressing outward on both latches automatically ejects the female socket smoothly and evenly, preventing contact bending and wire strain. Available in both Straight (Vertical 180°) and Right Angle (Horizontal 90°) configurations, the connector features high-conductivity gold/tin-plated square brass pins encased in a UL94V-0 certified flame-retardant housing for reliable long-term performance.
Key Features
-
Positive Locking & Ejector Latches: Side latch arms snap firmly over female IDC sockets, ensuring zero disconnects under heavy vibration and allowing smooth lever-assisted ejection.
-
Dual Orientations Available: Available in Straight (Vertical 180°) for top-access connections and Right Angle (Horizontal 90°) for edge mounting in low-profile enclosures.
-
Polarization Slot: Central alignment keyway prevents reverse-polarity mating.
-
Standard 2.54 mm (0.1″) Pitch: Fully compatible with standard dual-row IDC flat ribbon cable assemblies and PCB footprints.
-
Flame-Retardant PBT Housing: UL94V-0 certified thermoplastic body provides high thermal stability and dielectric isolation.
Technical Specifications
| Parameter | Specification |
| Model / Series | DC2 Latching Box Header (Ejector Header) |
| Orientation Options | Straight (180° Vertical) / Right Angle (90° Horizontal) |
| Latch Type | Standard Long Latch (for sockets with strain relief) / Short Latch |
| Pin Pitch | 2.54 mm (0.10″) |
| Row Spacing | 2.54 mm (0.10″) |
| Mounting Type | Through-Hole PCB Solder Mount |
| Housing Material | PBT Thermoplastic (Black / Grey, UL94V-0) |
| Contact Material | Solid Brass / Phosphor Bronze (Gold-Flash / Tin-Plated) |
| Rated Current | 1 A – 3 A per pin |
| Rated Voltage | 250 V AC / DC |
| Dielectric Withstanding | 1000 V AC / 1 min |
| Operating Temperature | -40°C to +105°C |
Additional information
| Pack Size |
50 Pcs ,100 Pcs |
|---|
