Flow Solder
Price range: ₹400.00 through ₹800.00 Inclusive of tax

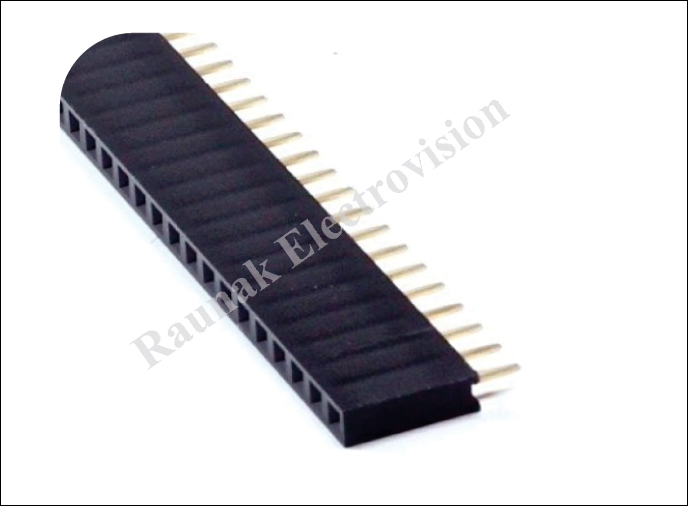

The Flow Solder PCB Terminal Block & Header is engineered specifically for high-temperature wave (flow) soldering and automated Through-Hole Reflow (THR) assembly processes. Featuring high-grade heat-resistant UL94V-0 thermoplastic housing, high-solderability tinned copper alloy pins, and standoff stand-offs for flux wash-out, it delivers dependable mechanical mounting and low-resistance electrical joints on single and multi-layer PCBs.
Description
Streamline automated PCB production and hand-soldering workflows with Flow Solder Through-Hole Terminal Blocks & Headers. Designed to withstand the intense thermal cycles of wave soldering pots and dip baths, these connectors prevent body warping, blister formation, and pin loosening during automated manufacturing.
Engineered with built-in housing standoffs, they allow optimal flux outgassing, solder wetting, and post-solder cleaning wash-out. The high-purity tinned brass/copper alloy pins ensure rapid solder joint formation, low contact resistance, and long-term joint integrity under continuous electrical and mechanical stress.
Key Features
-
Optimized for Flow / Wave Soldering: High-temperature plastic housing withstands peak soldering temperatures up to 260°C without deformation.
-
Superior Solderability: Pre-tinned copper alloy pins ensure complete 360° solder fillet formation and fast wetting.
-
Integrated PCB Standoffs: Elevates the connector body slightly off the PCB surface for efficient flux drainage and board cleaning.
-
High Dielectric & Flame Resistance: Molded from UL94V-0 flame-retardant polyamide (PA66 / PBT) for maximum electrical safety.
-
Multiple Pitch Standards: Fully compatible with standard 2.54 mm, 3.81 mm, 5.00 mm, 5.08 mm, and 7.50 mm grid layouts.
Technical Specifications
| Parameter | Specification |
| Product Type | Flow / Wave Solder PCB Connector (Terminal Block / Header) |
| Soldering Compatibility | Wave Soldering / Flow Soldering / Manual Dip Solder |
| Peak Solder Temperature | Up to 260°C (for 5–10 seconds) |
| Available Pitch Sizes | 2.54 mm, 3.50 mm, 3.81 mm, 5.00 mm, 5.08 mm, 7.50 mm |
| Mounting Type | Through-Hole (THT / THR) |
| Housing Material | High-Temp PA66 / PBT (Green / Black / Grey, UL94V-0) |
| Contact / Pin Material | Copper Alloy / Brass (Matte / Bright Tin-Plated) |
| Rated Voltage | 150 V – 600 V (Depending on pitch) |
| Rated Current | 8 A – 20 A |
| Operating Temperature | -40°C to +105°C |
Additional information
| Pack Size |
50 Pcs ,100 Pcs |
|---|
