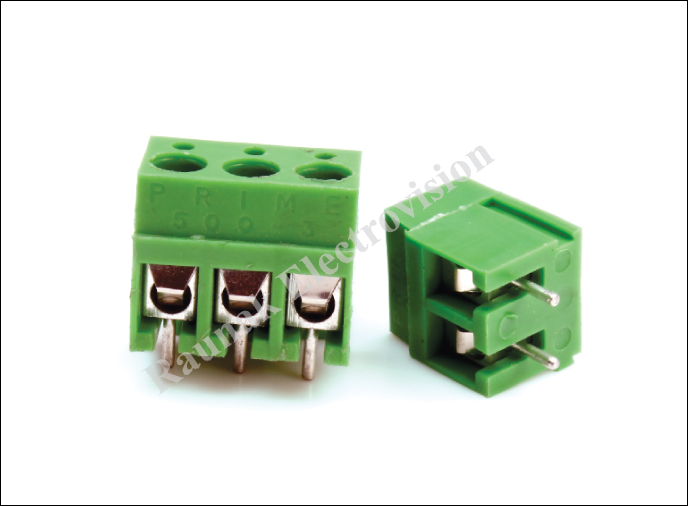

RE 126 5.00mm
Price range: ₹450.00 through ₹900.00 Inclusive of tax
The RE 126 5.00 mm Terminal Block is a dependable, metric-pitch PCB mount screw connector designed for robust wire-to-board power and signal distribution. Featuring a standard 5.00 mm pitch, interlocking modular dovetail rails, and a flame-retardant green PA66 housing, it offers vibration-resistant wire clamping, low contact resistance, and easy custom pole expansion for industrial control boards, power modules, and DIY electronics.
Description
Ensure clean, secure, and durable board-level wiring with the RE 126 5.00 mm PCB Screw Terminal Block. Engineered for space-saving metric layouts, this connector provides a solid electrical interface with excellent mechanical wire retention for both consumer and industrial electronics.
Equipped with modular interlocking dovetail side grooves, standard 2-pole and 3-pole modules can be linked together seamlessly to form any required pin configuration (such as 4, 6, 8, 10, or 12 pins) while preserving uniform 5.00 mm pitch alignment. Constructed with tinned brass/copper alloy pins and zinc-plated steel clamping screws, the RE 126 ensures minimal contact resistance, corrosion protection, and a vibration-proof hold on solid and stranded conductors. Its UL94V-0 certified PA66 body guarantees high dielectric insulation and thermal stability under continuous operating conditions.
Key Features
-
Metric 5.00 mm Pitch: Fully compatible with metric PCB grid layouts, power boards, and breakout interfaces.
-
Modular Interlocking Slots: Dovetail side joints allow quick combination of individual units into custom multi-pin assemblies.
-
Secure Screw-Clamp Termination: Provides high retention clamping to prevent wire loosening in dynamic or vibrating environments.
-
Flame-Retardant PA66 Housing: Built with UL94V-0 rated engineering thermoplastic for enhanced heat endurance and electrical safety.
Technical Specifications
| Parameter | Specification |
| Model | RE 126 |
| Pitch Spacing | 5.00 mm |
| Connector Type | PCB Mount Screw Terminal Block |
| Wire Entry Orientation | Side / Horizontal Entry |
| Termination Method | Screw Clamping / Solder Pin to PCB |
| Housing Material | Polyamide (PA66, Green, UL94V-0) |
| Contact Material | Copper Alloy / Brass (Tin-Plated) |
| Screw Material | M2.5 / M3 Steel (Zinc-Plated) |
| Rated Voltage | 250 V – 300 V |
| Rated Current | 10 A – 16 A |
| Applicable Wire Gauge | 26 – 12 AWG (0.5 – 2.5 mm²) |
| Operating Temperature | -40°C to +105°C |
Additional information
| Pack Size |
50 Pcs ,100 Pcs |
|---|
