RE 129 DD 5.08mm
Price range: ₹400.00 through ₹800.00 Inclusive of tax

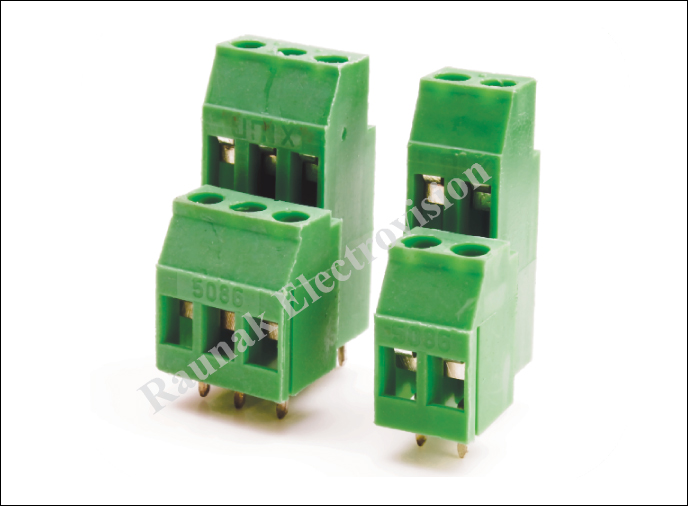

The RE 129 DD 5.08 mm Terminal Block is a space-saving, double-deck (two-tier) PCB mount screw connector designed for high-density wiring. Featuring a standard 5.08 mm pitch, two stacked levels of independent screw terminals, and a flame-retardant green PA66 housing, it doubles your PCB wire termination capacity without consuming additional board real estate.
Description
Maximize PCB space utilization with the RE 129 DD 5.08 mm Double-Deck Screw Terminal Block. Engineered specifically for dense circuit layouts, this two-tier modular connector enables twice the number of external wire connections within the same PCB footprint compared to conventional single-level terminal blocks.
Featuring staggered upper and lower wiring tiers for easy screwdriver access, the RE 129 DD simplifies routing and wire installation. High-conductivity tinned brass contacts paired with robust zinc-plated steel clamping screws provide low electrical resistance and vibration-resistant wire retention. Encased in industrial-grade UL94V-0 rated thermoplastic, it ensures dependable mechanical and dielectric performance across demanding applications.
Key Features
-
Double-Deck (2-Tier) Architecture: Doubles wiring density on the board, saving valuable PCB area.
-
Staggered Screw Access: Allows effortless wire insertion and screwdriver torque application to both levels.
-
Standard 5.08 mm (0.2″) Pitch: Compatible with industry-standard grid spacing and multi-pole interlock configurations.
-
Vibration-Proof Screw Clamping: Provides a secure, low-resistance hold on solid and stranded conductor wires.
-
Flame-Retardant PA66 Housing: Molded from UL94V-0 certified engineering thermoplastic for superior thermal stability and electrical insulation.
Technical Specifications
| Parameter | Specification |
| Model | RE 129 DD |
| Pitch Spacing | 5.08 mm (0.2″) |
| Configuration | Double Deck / Two-Tier (Stacked) |
| Connector Type | PCB Mount Screw Terminal Block |
| Termination Method | Screw Clamping / PCB Solder Pin |
| Housing Material | Polyamide (PA66, Green, UL94V-0) |
| Contact Material | Solid Brass / Copper Alloy (Tin-Plated) |
| Screw Material | Steel (Zinc-Plated) / M2.5–M3 |
| Rated Voltage | 250 V – 300 V |
| Rated Current | 10 A – 15 A per level |
| Applicable Wire Gauge | 26 – 12 AWG (0.5 – 2.5 mm²) |
| Operating Temperature | -40°C to +105°C |
Additional information
| Pack Size |
50 Pcs ,100 Pcs |
|---|
