RE 7062 L 7.62 mm
Price range: ₹400.00 through ₹800.00 Inclusive of tax

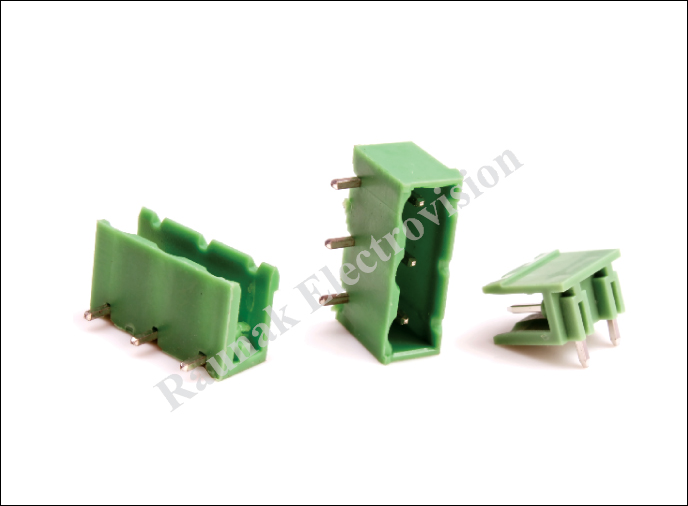

The RE 7062 L 7.62 mm Terminal Block is a heavy-duty, pluggable right-angle/side-entry connector designed for high-power wire-to-board PCB applications. Featuring a 7.62 mm pitch, robust screw clamping mechanism, and high-grade flame-retardant green housing, it provides superior dielectric isolation, vibration resistance, and convenient modular wiring in power electronics and industrial automation.
Description
Streamline high-power wire-to-board connections with the RE 7062 L 7.62 mm Pluggable Terminal Block. Designed with a modular, plug-in architecture, this connector allows for fast field maintenance, module swapping, and harness disconnection without desoldering or re-stripping wires.
The wide 7.62 mm pitch provides greater electrical clearance and creepage distance, significantly reducing the risk of dielectric breakdown and arcing in high-voltage environments. Built with high-conductivity tinned copper alloy contact clips and heavy-duty steel clamping screws, the RE 7062 L ensures low contact resistance, high current throughput, and a vibration-proof grip on both solid and stranded wires.
Key Features
-
Pluggable & Modular Architecture: Facilitates rapid sub-assembly replacement, system testing, and field maintenance.
-
Wide 7.62 mm Pitch: Delivers enhanced electrical insulation and clearance between adjacent pins for high-voltage circuits.
-
High-Torque Screw Clamping: Ensures a firm, vibration-proof hold on solid and stranded conductor wires.
-
Flame-Retardant PA66 Housing: Molded from industrial-grade UL94V-0 thermoplastic offering excellent heat resistance and dielectric strength.
Technical Specifications
| Parameter | Specification |
| Model | RE 7062 L |
| Pitch Spacing | 7.62 mm (0.30″) |
| Connector Type | Pluggable Terminal Block (Female Socket / Plug) |
| Termination Method | Screw Clamping |
| Housing Material | Polyamide (PA66, Green, UL94V-0) |
| Contact Material | Phosphor Bronze / Brass (Tin-Plated) |
| Screw Material | M3 Steel (Zinc-Plated) |
| Rated Voltage | 300 V – 600 V |
| Rated Current | 15 A – 20 A |
| Applicable Wire Gauge | 24 – 12 AWG (Up to 2.5 mm² / 4.0 mm²) |
| Operating Temperature | -40°C to +105°C |
Additional information
| Pack Size |
50 Pcs ,100 Pcs |
|---|
