RE 48 5.08mm
Price range: ₹400.00 through ₹800.00 Inclusive of tax

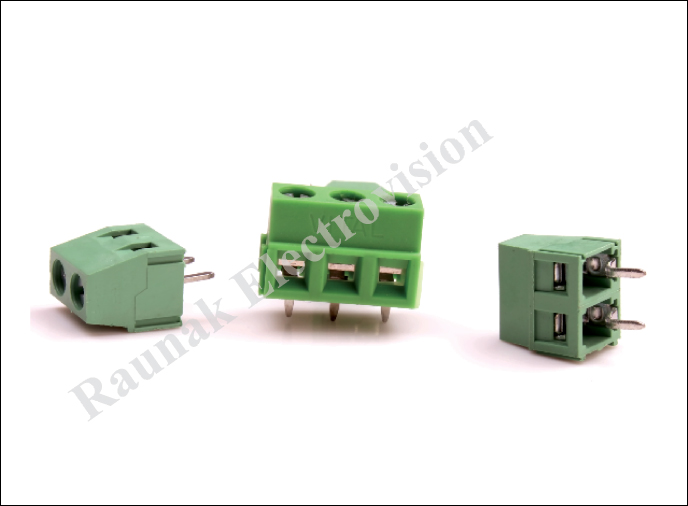

The RE 48 5.08 mm Terminal Block is a compact, reliable PCB mount screw terminal connector designed for secure wire-to-board power and signal routing. Featuring a standard 5.08 mm (0.2″) pitch, side interlocking dovetail slots, and a flame-retardant green PA66 housing, it offers vibration-resistant wire termination, low contact resistance, and modular expandability for power supplies, automation, and PCB prototyping.
Description
Ensure durable, low-resistance electrical connections with the RE 48 5.08 mm PCB Screw Terminal Block. Designed for general-purpose electronic systems and industrial control boards, this connector offers an optimal balance of compact size, mechanical clamping strength, and high dielectric performance.
Featuring modular dovetail side interlocks, individual 2-pole and 3-pole units can be easily snapped together to create custom pin counts (such as 4, 6, 8, or 12 poles) without disrupting standard PCB pitch spacing. Built with tinned copper alloy terminal pins and zinc-plated steel clamping screws, the RE 48 delivers a strong, vibration-proof grip on both solid and stranded conductor wires. Its UL94V-0 certified engineering plastic housing provides superior thermal endurance and electrical insulation under continuous loads.
Key Features
-
Standard 5.08 mm (0.2″) Pitch: Fully compatible with standard PCB footprint layouts, breakout boards, and grid spacing.
-
Modular Interlocking Build: Built-in side dovetail grooves allow multiple blocks to be linked into any custom pole length.
-
Vibration-Proof Screw Clamping: Delivers high mechanical retention and prevents wire loosening in dynamic environments.
-
Flame-Retardant PA66 Housing: Molded from industrial-grade UL94V-0 thermoplastic for high heat resistance and electrical safety.
Technical Specifications
| Parameter | Specification |
| Model | RE 48 |
| Pitch Spacing | 5.08 mm (0.2″) |
| Connector Type | PCB Mount Screw Terminal Block |
| Wire Entry Orientation | Side / Horizontal Entry |
| Termination Method | Screw Clamping / Solder Pin to PCB |
| Housing Material | Polyamide (PA66, Green, UL94V-0) |
| Contact Material | Copper Alloy / Brass (Tin-Plated) |
| Screw Material | M2.5 / M3 Steel (Zinc-Plated) |
| Rated Voltage | 250 V – 300 V |
| Rated Current | 10 A – 16 A |
| Applicable Wire Gauge | 24 – 12 AWG (0.5 – 2.5 mm²) |
| Operating Temperature | -40°C to +105°C |
Additional information
| Pack Size |
50 Pcs ,100 Pcs |
|---|
