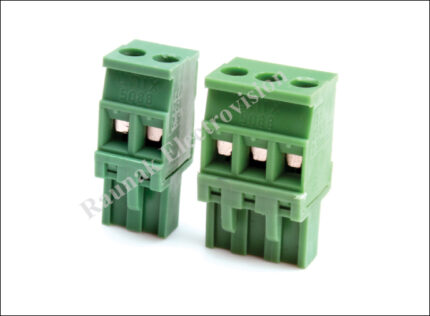

RE 5085 H 5.08 mm
Price range: ₹250.00 through ₹500.00 Inclusive of tax
The RE 5085 H 5.08 mm Terminal Block is a durable, pluggable screw-type terminal connector engineered for quick, secure, and vibration-resistant wire-to-board connections. Featuring a standard 5.08 mm pitch and high-grade flame-retardant housing, it simplifies maintenance and wiring in industrial, robotics, and PCB prototyping projects.
Description
Upgrade your PCB wiring efficiency with the RE 5085 H 5.08 mm Pluggable Terminal Block. Designed for modularity and ease of maintenance, this connector allows for quick disconnection and re-connection of wire harnesses without desoldering or re-stripping cables.
Built with a high-torque screw clamping mechanism and copper alloy contacts, it provides a stable electrical connection with minimal contact resistance. The robust PA66 insulating body offers excellent thermal stability and electrical insulation, making it suitable for both hobbyist electronics and demanding industrial control panels.
Key Features
-
Pluggable Design: Facilitates fast module replacement, testing, and field maintenance.
-
Standard 5.08 mm Pitch: Fully compatible with standard 5.08 mm male pin headers and PCB layouts.
-
Reliable Screw Clamp: Ensures a vibration-proof, high-retention grip on solid and stranded wire.
-
Flame-Retardant Housing: Made from industrial-grade UL94V-0 rated thermoplastic.
Technical Specifications
| Parameter | Specification |
| Model | RE 5085 H |
| Pitch Spacing | 5.08 mm (0.2″) |
| Connector Type | Pluggable Terminal Block (Female Socket) |
| Mounting / Termination | Screw Clamp |
| Housing Material | Polyamide (PA66, Green) |
| Contact Material | Tinned Phosphor Bronze / Brass |
| Rated Voltage | 300 V |
| Rated Current | 10 A – 15 A |
| Applicable Wire Gauge | 28 – 12 AWG |
Additional information
| Pack Size |
50 Pcs ,100 Pcs |
|---|
