RE 3811 H 3.81 mm
Price range: ₹300.00 through ₹600.00 Inclusive of tax

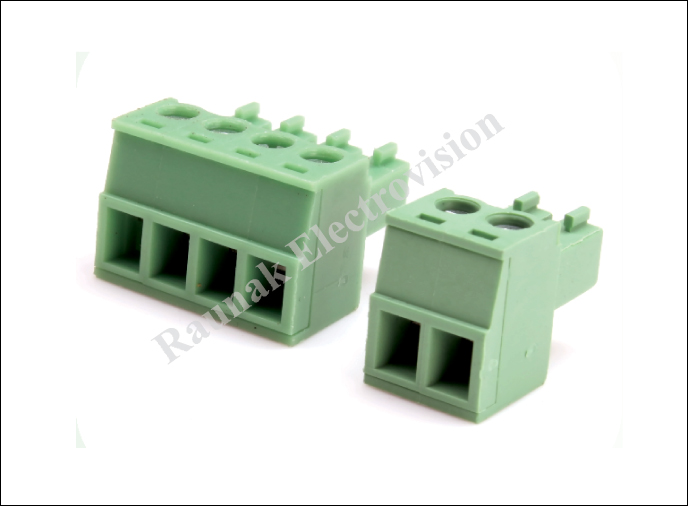

The RE 3811 H 3.81 mm Terminal Block is a compact, high-reliability pluggable screw connector designed for high-density wire-to-board PCB applications. Featuring a fine 3.81 mm pitch, flame-retardant PA66 green housing, and secure screw-clamp terminals, it provides space-saving, vibration-resistant, and easily detachable connections for precision electronics and control modules.
Description
Optimize board space without sacrificing connection integrity with the RE 3811 H 3.81 mm Pluggable Terminal Block. Specifically engineered for compact electronics and high-density PCB layouts, this connector allows quick plug-and-unplug servicing for modular field maintenance and testing.
Constructed with high-conductivity copper alloy contact clips and a zinc-plated steel screw clamp, the RE 3811 H delivers low contact resistance and strong wire retention. The robust UL94V-0 rated thermoplastic insulator ensures dependable performance across a wide operating temperature range.
Key Features
-
Compact 3.81 mm (0.15″) Pitch: Ideal for space-constrained PCB boards, sensor arrays, and communication interfaces.
-
Pluggable & Modular: Enables quick harness detachment and rapid maintenance without soldering or wire re-stripping.
-
Reliable Screw Clamp Connection: Delivers a secure, vibration-resistant grip on both stranded and solid core wiring.
-
Flame-Retardant & Durable: Built with industrial-grade PA66 housing offering high dielectric strength and thermal resistance.
Technical Specifications
| Parameter | Specification |
| Model | RE 3811 H |
| Pitch Spacing | 3.81 mm (0.15″) |
| Connector Type | Pluggable Terminal Block (Female Socket) |
| Orientation | Horizontal Entry |
| Termination Method | Screw Clamping |
| Housing Material | Polyamide (PA66, Green, UL94V-0) |
| Contact Material | Phosphor Bronze / Copper Alloy (Tin-Plated) |
| Rated Voltage | 300 V |
| Rated Current | 8 A – 10 A |
| Applicable Wire Gauge | 28 – 16 AWG |
| Operating Temperature | -40°C to +105°C |
Additional information
| Pack Size |
50 Pcs ,100 Pcs |
|---|
