RE 508 5.08mm
Price range: ₹450.00 through ₹900.00 Inclusive of tax

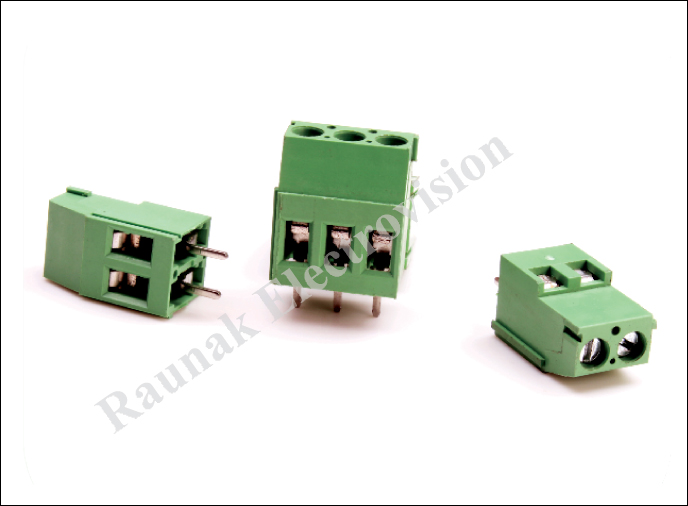

The RE 508 5.08 mm Terminal Block is an industry-standard, side-entry PCB mount screw terminal connector designed for reliable wire-to-board connections. Featuring a standard 5.08 mm (0.2″) pitch, interlocking dovetail side grooves, and a flame-retardant green PA66 housing, it offers secure, vibration-resistant wire termination and modular expandability for power supplies, industrial automation, and PCB prototyping.
Description
Ensure dependable, cost-effective wire-to-board connections with the RE 508 5.08 mm PCB Screw Terminal Block. As one of the most widely used terminal blocks in electronics manufacturing, the RE 508 combines high electrical conductivity with mechanical durability for everyday PCB wiring needs.
Designed with modular interlocking side rails (dovetail slots), individual 2-pin and 3-pin blocks can be easily connected end-to-end to form custom pin-count configurations (e.g., 4-pin, 5-pin, 8-pin, 12-pin). Built with tinned brass solder pins and zinc-plated steel clamping screws, it provides strong wire retention and minimal contact resistance across solid and stranded wiring. Its industrial-grade UL94V-0 rated housing ensures excellent heat resistance and dielectric isolation.
Key Features
-
Standard 5.08 mm (0.2″) Pitch: Fully compatible with standard PCB layout footprints, breadboard breakout boards, and grid spacing.
-
Modular Interlocking Design: Dovetail side slots allow easy snapping together of 2-pin/3-pin units into any custom pole length.
-
Reliable Screw-Clamp Mechanism: Delivers a secure, vibration-proof grip on both solid and stranded conductor wires.
-
Flame-Retardant PA66 Housing: Molded from premium UL94V-0 rated engineering thermoplastic for superior thermal and electrical stability.
Technical Specifications
| Parameter | Specification |
| Model | RE 508 |
| Pitch Spacing | 5.08 mm (0.2″) |
| Connector Type | PCB Mount Screw Terminal Block |
| Wire Entry Orientation | Side / Horizontal Entry |
| Termination Method | Screw Clamping / PCB Solder Pin |
| Housing Material | Polyamide (PA66, Green, UL94V-0) |
| Contact Material | Brass / Copper Alloy (Tin-Plated) |
| Screw Material | M2.5 / M3 Steel (Zinc-Plated) |
| Rated Voltage | 250 V – 300 V |
| Rated Current | 10 A – 16 A |
| Applicable Wire Gauge | 24 – 12 AWG (0.5 – 2.5 mm²) |
| Operating Temperature | -40°C to +105°C |
Additional information
| Pack Size |
50 Pcs ,100 Pcs |
|---|
