RE 58 DD 5.08mm
Price range: ₹500.00 through ₹1,000.00 Inclusive of tax

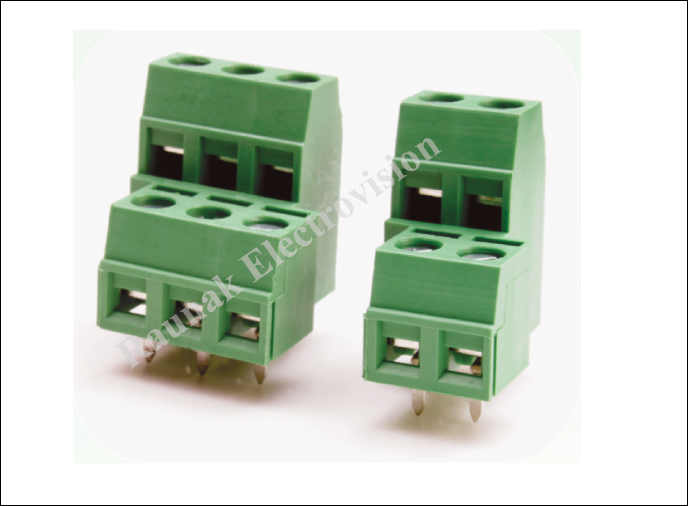

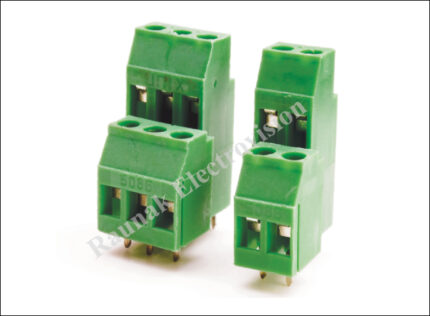

The RE 58 DD 5.08 mm Terminal Block is a compact, space-saving double-deck (two-tier) PCB mount screw connector designed for high-density wiring applications. Featuring an industry-standard 5.08 mm pitch, stacked terminal levels, and flame-retardant green PA66 housing, it doubles wire connection capacity on your PCB without expanding board footprint.
Description
Maximize PCB layout efficiency and wire capacity with the RE 58 DD 5.08 mm Double-Deck Screw Terminal Block. Engineered for space-constrained electronics, this two-tier modular connector enables twice as many external wire connections within the same PCB mounting area compared to standard single-level terminal blocks.
Designed with an offset/staggered profile for easy screwdriver access to both upper and lower screw terminals, the RE 58 DD ensures hassle-free wiring and maintenance. Built with high-conductivity tinned brass/copper alloy contacts and heavy-duty steel clamping screws, it delivers low contact resistance and vibration-resistant wire retention. The robust UL94V-0 flame-retardant polyamide housing ensures high dielectric strength and thermal stability under continuous operation.
Key Features
-
Double-Deck (2-Tier) Design: Delivers double the wiring density, significantly saving valuable PCB real estate.
-
Staggered Screw Access: Ensures easy screwdriver alignment and smooth wire insertion for both tiers.
-
Standard 5.08 mm (0.2″) Pitch: Fully compatible with standard PCB layout grids and modular interlocking systems.
-
Vibration-Proof Screw Clamping: Provides a firm, low-resistance grip on solid and stranded conductor wires.
-
Flame-Retardant PA66 Housing: Molded from premium UL94V-0 thermoplastic for high heat resistance and electrical insulation.
Technical Specifications
| Parameter | Specification |
| Model | RE 58 DD |
| Pitch Spacing | 5.08 mm (0.2″) |
| Configuration | Double Deck / Two-Tier (Stacked) |
| Connector Type | PCB Mount Screw Terminal Block |
| Termination Method | Screw Clamping / Solder Pin to PCB |
| Housing Material | Polyamide (PA66, Green, UL94V-0) |
| Contact Material | Solid Brass / Copper Alloy (Tin-Plated) |
| Screw Material | Steel (Zinc-Plated) / M2.5–M3 |
| Rated Voltage | 250 V – 300 V |
| Rated Current | 10 A – 15 A per level |
| Applicable Wire Gauge | 26 – 12 AWG (0.5 – 2.5 mm²) |
| Operating Temperature | -40°C to +105°C |
Additional information
| Pack Size |
50 Pcs ,100 Pcs |
|---|
