RE 5088 5.08mm
Price range: ₹300.00 through ₹600.00 Inclusive of tax
The RE 5088 5.08 mm Terminal Block is a rugged, modular PCB mount screw terminal connector designed for reliable wire-to-board power and signal routing. Featuring a standard 5.08 mm (0.2″) pitch, side interlocking dovetail slots, and a flame-retardant green PA66 housing, it offers vibration-resistant wire termination, low contact resistance, and modular pin-count expansion for industrial automation, power modules, and PCB prototyping.
Description

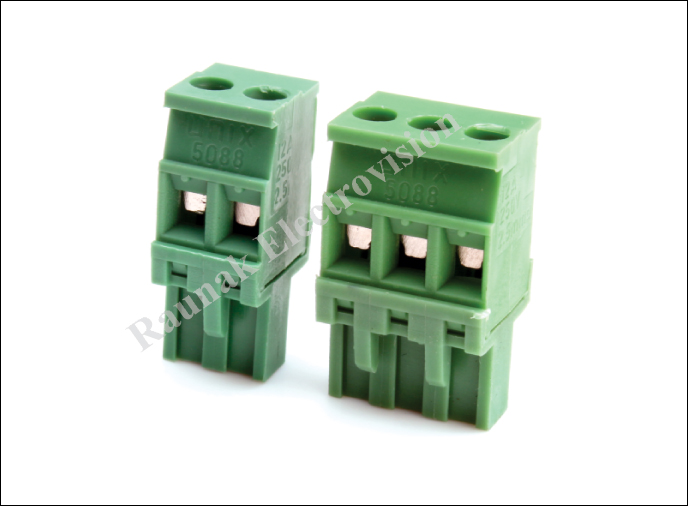

Ensure solid, long-lasting wire-to-board connections with the RE 5088 5.08 mm PCB Screw Terminal Block. Designed with an interlocking modular architecture, individual 2-pole and 3-pole units can be snapped together effortlessly using built-in side dovetail grooves to create custom multi-pin configurations (such as 4, 6, 8, 10, or 12 poles) without altering standard PCB layout spacing.
Constructed with high-conductivity tinned brass/copper alloy terminal pins and zinc-plated steel clamping screws, the RE 5088 delivers low contact resistance and high mechanical holding force on solid and stranded conductors. Its industrial-grade UL94V-0 rated thermoplastic insulator provides superior electrical isolation and high heat tolerance, ensuring dependable performance in continuous-duty industrial, automation, and consumer electronics applications.
Key Features
-
Standard 5.08 mm (0.2″) Pitch: Fully compatible with standard PCB footprint layouts, breakout boards, and industrial grid spacing.
-
Modular Dovetail Interlock: Side interlocking design allows quick and secure assembly of units into any required pole length.
-
Vibration-Proof Screw Clamping: Provides a firm, low-resistance grip that prevents wire loosening in dynamic or vibrating environments.
-
Flame-Retardant PA66 Housing: Molded from premium UL94V-0 engineering thermoplastic for high thermal stability and dielectric safety.
Technical Specifications
| Parameter | Specification |
| Model | RE 5088 |
| Pitch Spacing | 5.08 mm (0.2″) |
| Connector Type | PCB Mount Screw Terminal Block |
| Wire Entry Orientation | Side / Horizontal Entry |
| Termination Method | Screw Clamping / PCB Solder Pin |
| Housing Material | Polyamide (PA66, Green, UL94V-0) |
| Contact Material | Solid Brass / Copper Alloy (Tin-Plated) |
| Screw Material | M2.5 / M3 Steel (Zinc-Plated) |
| Rated Voltage | 250 V – 300 V |
| Rated Current | 10 A – 16 A |
| Applicable Wire Gauge | 24 – 12 AWG (0.5 – 2.5 mm²) |
| Operating Temperature | -40°C to +105°C |
Additional information
| Pack Size |
50 Pcs ,100 Pcs |
|---|
