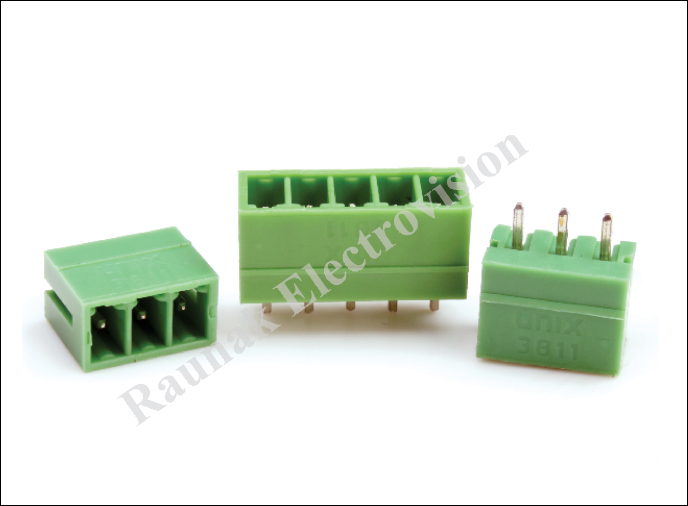

RE 3811 V 3.81 mm
Price range: ₹450.00 through ₹900.00 Inclusive of tax
The RE 3811 V 3.81 mm Terminal Block is a compact, vertical/straight pluggable screw connector designed for high-density wire-to-board PCB systems. Featuring a fine 3.81 mm (0.15″) pitch, straight top-access plug-in mating profile, and flame-retardant green PA66 housing, it offers quick desolder-free wire harness disconnection and vibration-resistant clamping for space-constrained industrial electronics and sensor modules.
Description
Maximize PCB layout efficiency and enable effortless top-access servicing with the RE 3811 V 3.81 mm Vertical Pluggable Terminal Block. Engineered for high-density electronic assemblies, this pluggable female socket allows rapid connection and detachment of wire harnesses without the need for desoldering or cable re-stripping.
Equipped with precision-machined screw clamp terminals and tinned phosphor bronze/copper alloy contacts, the RE 3811 V delivers minimal contact resistance and dependable mechanical clamping force on both solid and stranded conductor wires. Its robust, UL94V-0 certified flame-retardant PA66 housing ensures exceptional dielectric isolation and thermal stability across demanding industrial environments.
Key Features
-
Vertical / Straight Entry Mating: Enables convenient top-access pluggable connections, making it ideal for compact enclosures and tightly packed boards.
-
Fine 3.81 mm (0.15″) Pitch: Optimizes board space for high-channel-density signal routing, sensor breakouts, and microcontrollers.
-
Pluggable & Modular Architecture: Facilitates rapid sub-assembly swapping, board replacement, and streamlined field maintenance.
-
Vibration-Proof Screw Clamping: Provides a secure, low-resistance grip across a wide range of solid and stranded wire gauges.
-
Flame-Retardant PA66 Body: Molded from premium UL94V-0 engineering thermoplastic for high thermal tolerance and electrical safety.
Technical Specifications
| Parameter | Specification |
| Model | RE 3811 V |
| Pitch Spacing | 3.81 mm (0.15″) |
| Connector Type | Pluggable Terminal Block (Female Socket / Plug) |
| Orientation | Vertical / Straight Entry |
| Termination Method | Screw Clamping |
| Housing Material | Polyamide (PA66, Green, UL94V-0) |
| Contact Material | Phosphor Bronze / Copper Alloy (Tin-Plated) |
| Screw Material | Steel (Zinc-Plated) / M2 |
| Rated Voltage | 300 V |
| Rated Current | 8 A – 10 A |
| Applicable Wire Gauge | 28 – 16 AWG (0.2 – 1.5 mm²) |
| Operating Temperature | -40°C to +105°C |
Additional information
| Pack Size |
50 Pcs ,100 Pcs |
|---|
